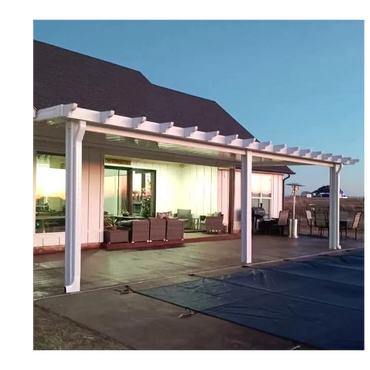

What is a Combination cover?
Combination type of patio cover can be any two parts of a patio structure that is combined together to for a single shade structure. Can be any part of a solid type of patio cover, or any part pergola or you can throw in any part Screen room or even a Sunroom as well that is combined within one structure. Today we blur the lines all the way around. Sometimes we found ourselves building a pergola and then covering it like a patio cover. And sometimes we are building a patio cover and making it look like a pergola.
Patio Cover / Porch Cover / Patio Roof Cover
Sunshine is for your soul and medicine for your mind. That is why we say, Live more outdoors!
Patio covers, also known as covered patios or porches, are some of the most sought-after backyard shade structures we construct, especially given our region's warmer climate. They provide a gathering space that reflects today's latest trends. Ball season is about here. So, it's time to get your shade up and on and get the grill ready to be fired up as well.
The Spring / Summer, and the fall seasons is perfect for the patio weather! It's time to head outdoors and savor the warmth. With the majority of people in North America wanting to spend more time outdoors comes the need to integrate share into many outdoor patio designs. Proper shade applications will offer users UV protection, regulate temperature keeping them cool, help to increase the lifespan of outdoor furnishings and enhance the overall aesthetic of the outdoor patio area. Consider inviting family and friends over for some quality time on your patio together. It's a good time and it's a good place to get together and chill out! Patio or porch covers of today are a lot more advanced than just hanging a piece of tin up over some timbers for shade like our grandparents might have done back in the day as the building materials have evolved in the modern day to more advanced building materials.
A Patio Cover is a canopy type of covering over a patio, porch, deck and pool or break area. Patio covers stand as an exceptional pergola idea for shade coverage. These resilient, easy-care structures deliver protection against sunlight while harmoniously blending with your current outdoor space. Coming in multiple designers, colors and canopies, aluminum patio covers can be installed over your patio or other spaces, achieving an ideal balance between shade coverage and aesthetic design elements. Premium construction helps minimize heat, maintaining a cooler outdoor environment during summer months while ensuring a beautiful structure that compliments your outdoor space.
It is a place to relax, de-stress and get out of the house and relax. Some like to cook outside especially the stickier stuff to cook that they love but it can stick up the interior of the house such as like fish and so on. If you like getting outside but don't like to turn red like a lobster a patio cover is a must have. Let's face the truth. Everybody needs cover to protect themselves. We are also keen on the front door patio or porch as well which is an up-and-coming thing now days. Get rid of the old umbrella(s) and expand upon that old concrete slab.
Does your backyard space need a makeover? Are you seeking a solution for an overly hot patio area? We encountered several customers contemplating the purchase of new windows to mitigate the heat transferring through their windows and sliding patio door glass, which was impacting their air conditioner's efficiency. However, once we installed new patio covers, they found them so effective that the windows upgrades became unnecessary on that part of the house.
Before you purchase any outdoor furniture and put your own personal touches on your new porch or patio area you should always build the shelter structure first to protect the furniture from the weather elements.
- There are various types of patio covers as patio covers has a lot build options to choose from, including solid covers, lattice covers, attached cover, freestanding covers, combination covers, and the newer kid on the black are the movable slat covers.
- Solid patio covers offer year-round shade and protection but may block out natural light completely and require additional maintenance.
- Lattice patio covers provide a mix of sunlight and shade, adding character and style to outdoor spaces.

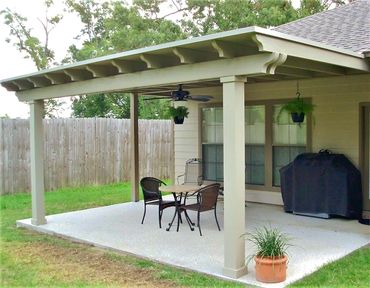

- Attached Patio Cover are attached to the house or other structure.
- Freestanding patio covers are ideal for areas away from the house, providing flexibility in placement and cost-effective coverage.
- Combination are part patio covers, arbor or pergola or screen rooms offer both partial shade and complete coverage, allowing you to enjoy your outdoor space in any weather.
Today, many individuals are choosing to stay at home more, leading to a rise in the demand for comfortable areas that blend indoor and outdoor living. This trend allows for enjoyment of the outdoors, whether it's working on a computer, reading, or watching TV outside while having a meal or a drink on the patio. The shift towards permanent work-from-home options has prompted homeowners to transform their spaces into home office area and fitness centers.
Outdoor areas are being converted into spa retreats, mini gaming zones, cooking and grilling spots, bars, community social hubs, compact workout and yoga areas, home theaters, and entertainment spaces, as well as vegetable gardens, outdoor fireplaces, and kitchens. These are referred to as outdoor living spaces, a trend that has gained popularity and is anticipated to grow in the coming years. In 2020, the pergolas/patio category was the leading segment in the outdoor living structures market, making up about 65% of the revenue share, propelled by consumer preferences for greenery-enriched sitting areas and expansions of outdoor living rooms. This is because more people in urban areas and smaller homes are looking to garden, making container gardening ideal for those with limited space, like balconies, patios, or smaller backyards.
Your outdoor living experience all starts with your new canopy shelter!
Container gardens are very much on the rise and new tends emerge/
There are three different types of Patios Covers:
* Attached - An attached overhead structure that is attached to the roof or back wall of the house and is supported by poles or post.
* Stand-a-lone - type of structure is not attached and would require additional poles and beams.
* Roof Extension - It is a built-in solution to the home roof structure and extended or wall build out add-on type structure.
Different type of Roof Designs:
* Cable
* Hip
* Shad (single slopped design)
* Roof Risers
Crafting multi-functional spaces to serve multiple functions, from dining and entertainment to relaxation and shelter, is a cornerstone to masterful planning that is hinged on the unique preferences of the homeowner. For example, we have had our clients mix and match the following spaces with their pergolas or patio covers:
- Dining areas
- Kitchens and bars
- Lounge spaces
- Exercise zones
- Children or pet play areas
- Garden spaces
- Spas and hot tub areas
- Firepit circles
- Media entertainment zones
- Home outdoor offices
These multi-functional zones can be adapted to suit both individual and family needs for outdoor living with patio covers and / or a pergola structure. Some clints have us build their project on our initial installation visit but most build their project over a few different phases. It is not uncommon to build a project over time in different phases.
Entertain your guests under your new patio cover! A variety of new patio furniture, Bar, outdoor heaters, smart lighting light that are controlled by your phone and plant features and container gardens have emerged. Smart Technology Integration with are tending. Over the past few years, technology has been integrated into a plethora of home systems. The outdoor living market has been trending upwards and rising for the past few years and continues for 2025. In recent years, comfortable outdoor living spaces have seen a surge in popularity. Think cozy patio furniture in soft, high-quality materials, and a sprawling outdoor cooking set up. Simple BBQ setups with a grill and an umbrella in the back yard have evolved into full blown outdoor kitchens, and this trend is only expected to grow more in 2025 with more and more products and accessories that are available. There are plenty of chooses when adding your personal choices to your new patio or porch. with all types of LED light and outdoor heaters are my favorite ways to jazz up a patio cover. Patio / Porch covers are also turning in a community social hub both in the back yard and the front porches.
We like to say: We build it, and then you make it your own. Add your unique style, colors, and flair, along with outdoor furnishings, to transform it into your own distinctive outdoor haven!
Time to upgrade and create your own outdoor space!
Elevate your outdoor living space! Join todays outdoor living craze!
The 5 Cost Factors of Installing a Patio Cover
When working with a large open-span structure without center poles, it's important to use building materials specifically designed or engineered for the intended purpose. Longer, thicker beams must be capable of supporting the wide, open spans between the support poles.
Consider These Six Factors Before Your Installation
1, Budget: The budget has everything to do with what type of patio structure you can build.
2. The size and shape
The size of the patio cover you require is one of the most significant cost determinants. Larger covers that cover more square footage naturally require more labor and materials, resulting in a higher price tag. The design complexity of the patio cover can also affect the cost. Simple, rectangular covers are typically more affordable than those with intricate shapes or multiple projections.
3. Materials
The materials used to construct the frame and canopy top can vary widely in cost. For example, aluminum frames are generally more expensive than unprotect steel products. Protect steel product run higher
4. Site Preparation
Depending on the condition of your site, preparatory work may be necessary before installation starts. Tasks like grading, excavation, or removing existing structures can increase labor costs.
5.The project complexity
The complexity of the installation process can also impact the overall cost of your structure. Factors like site accessibility, the need for specialized equipment (like cranes or lifts), and the required level of customization can all add to the labor and equipment expenses. Installing posts and footings on a patio or deck is usually more straightforward than anchoring into concrete or landscaped areas with sprinklers, plants, and ground slopes to work around.
6. Permits and regulations
Depending on your location, you may need to obtain permits or adhere to specific building codes or regulations when installing a patio cover. The associated fees and potential requirements for engineering or architectural services can add to the overall cost.
At Carport and Patio Cover of OK we’ve learned in our decades of experience that every project is unique, and we’re committed to working closely with our customers to provide accurate cost estimates. Our expert team will assess your specific needs, taking into account the factors mentioned above, to ensure that you receive the perfect patio cover solution for your budget.
Remember, while the initial cost of installing a patio cover may seem substantial, it’s an investment that can pay dividends in terms of increased comfort, reduced energy costs, and enhanced property value.
When working with a large open-span structure without center poles, it's important to use building materials specifically designed or engineered for the intended purpose. Longer, thicker beams must be capable of supporting the wide, open spans between the support poles.
Never scrimp on the columns / poles that is what holds the structure up.
All post must attach to a concrete pads surface or set into a 2-ft deep concrete pear. You can never have all of the legs that are surface mounted or you're asking for trouble because of what is called structural lateral sway.
Concrete Core drilling a concrete slab might be an option for a more securing pole mounting applications.

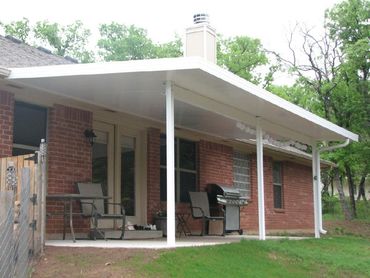

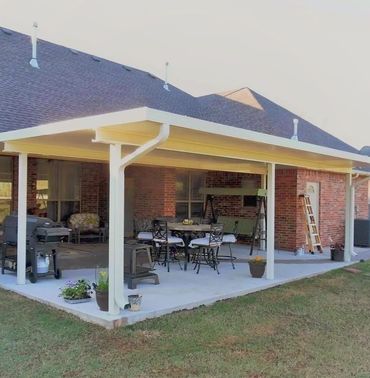

About Structural Insulated Panels -
Want to beat the heat? - Structural Insulated Panels, often known as SIP's, Insulated Panels, or Solar Panels, are among the most robust panel types available. SIPs are capable of enduring severe weather conditions.
Carports and Patio Covers of Oklahoma by A Better Construction Co (ABC), is a framing specialist and a recognized specialty metal builder / contractor. We possess unique qualifications to build any type of structure, and as framers, we uphold the belief that the frame is the foundation of every building.
Structural insulated panels, or SIPs, feature an insulated 3, 4, - 6" inch-thick "foam core" strong structural panels that is sandwiched between two layers of aluminum cladding, usually made of expanded polystyrene (EPS).
These construction panels are innovative alternatives for patio covers, surpassing traditional single-ply rolled-formed covers or carport canopies, especially in hail-prone areas. SIPs deliver unmatched strength, flexibility, and long-term energy efficiency, making them the perfect choice for use in a patio cover screen room or sunroom editions. A significant benefit is that hail damage to the top of the SIPs remains unseen from below. Moreover, SIP canopies provide a quieter ambiance by eliminating that 'pinging' sound during a heavy rain or hailstorm.
SIPs are versatile, serving as walls or roofing panels for screen and sunrooms. They're also used in cold storage and are gaining popularity as a mainstream construction material for various housing projects, including SIP-based kit homes being offered today. In the summertime and occasionally throughout the year, temperatures can soar, and the sun's rays can be relentless and scorching. Therefore, staying out of the sun is not just advisable; it's essential. Installing a patio cover is one o the smartest additions to your home. It creates a barrier between you and the intense sun, providing a safe and comfortable area for you and your family to enjoy the outdoors without being confined indoors.
A patio cover also helps reduce the heat that can accumulate in your house due to sun exposure. SIPs are particularly effective in blocking thermal solar heat transfer during our summer season. Let face it, the areas where we live, for example, OKC and Tulsa and the like all have one thing in common is, heat. Summertime here in Oklahoma can get extremely hot with the exception of a few spring and fall months. Which is the reason you should consider a "Structural Insulated Panel" (SIP) patio cover. For screened sunrooms applications, the use aluminum-clad SIP panels are a must have and make the difference between using the area or not, most of the time we typically use 4 feet wide or in 2-foot snap-lock roof canopy that make up the entire patio cover, screen room or sunroom roof section. These panels are normally 3-inch-thick, but they are also offered in 4-6-inch-thick panels for use in applications for longer open spans. SIPs can also be finished with aluminum, steel or OSB plywood for traditional applications.
By adding a patio cover, you can convert an unbearably hot backyard concrete slab into a welcoming space that's used regularly. It becomes an outdoor haven where you can breathe in fresh air. Many people are now adding large outdoor TV screens and projectors for family nights or movie evenings on the patio, which might even entice neighborhood kids to join in with their bean bags. We design each structure to suit your tastes and preferences; no two spaces are ever just alike!
The underside of our insulated patio cover roof panels are engineered for energy efficiency and durability, bearing up to 72 lbs. per square foot. These panels are 4 times stronger and are 15 times more airtight than traditional stick framing, cutting heat transfer by 97%, which are significantly cooler on the area underneath. Their robustness means SIPs need less supporting framing than traditional metal, stick, or timber frames. SIPs are becoming more and more popular in used more in mainstream building of today all in the name of energy efficiency. There are new house plans that are available that are using the SIPs. Also seeing more and more Manufactures offing more SIP various other different cladding such as steel and OSB to be used in applications that might require roofing shingles to be fix or attached to them. SIP is all about energy efficiency and not allowing the heat to transfer though that canopy top. In a sunroom or a screen room application it can make the difference between you using that area on a hot summers' day or not. In a open patio cover application it is the coolest canopy cover your money can buy. If you ever think about converting your patio cover to a screen room or a sunroom now at a later time buy the SIP canopy cover. We invite you to explore to newer more advanced, modern day building materials of today!
Top-of-the-line "solid" SIP canopy covers are utilized in home construction, including sunrooms, screen rooms, patio covers, cold storage lockers, and carports, as well as in new home and commercial construction applications.
Structural Insulated Panels (SIPs) are pressure-laminated composites consisting of baked, polyester-coated steel or aluminum coil sheets. These sheets are roll-formed, computer-cut, and feature a core of routed expanded polystyrene foam (EPS). The components are bonded under pressure using an adhesive, creating panels that offer both structural support and insulation. Envision them as robust, thick metal sandwiches with a foam center. SIPs are ideal for various outdoor canopy structures and have long been utilized in the sunroom and cold storage industries. Insulated carports and patio cover roof panels excel in thermal energy efficiency and boast a robust design, supporting up to 72 lbs. per square foot. Additionally, an assortment of poles and cross beams in diverse colors are available,
SIPs are now increasingly favored for framing, roofing, or wall construction. The modern home building industry is also adopting these energy-efficient panels for comprehensive house design and construction solutions. Structural insulated panels provide significantly more strength and insulation than single ply building panels.
Defiantly this is the best type of solid cover one anyone should look into for use in hot summer season climate region.
SIP patio covers, can also be used for a Screen room or Sunrooms as well. With careful some design and planning today we can always make it possible to come back and add walls/doors to an open SIP patio covers to build or convert it into a Screen or Sunroom at a later date.
Structural insulated panel patio covers offer several advantages that make them a popular choice for outdoor living spaces. These advantages make structural insulated panel patio covers a smart choice for homeowners looking to enhance their outdoor living experience
Here are some of the key benefits:
- Energy efficiency: The SIPs help you save energy by keeping the patio cover cooler in the summer and warmer in the winter.
- Durability: Made from high-quality materials these covers are resistant to weather damage, fading, and fire, ensuring long lasting performance.
- Noise reduction: The high-density insulation in the roof panels adsorbs sounds, creating a more peaceful and relaxing patio cover. Quitter during heavy rainstorms. No pinging like a single ply metal panel.
- Weight: Structured Insulated roof panels are heavier than a non-insulated option.
- Choose of build options and designs. Single slopped or shed type of roof or a cable style roof option.
- Choose of different guttering options. Can have a drip edge and standard house K-style of guttering can be added. Or there is a heavy duty extruded aluminum guttering option and side trim to match that is & inches high and, in most cases doesn't allow the top of canopy to be seen from the ground.
- Modern look
- No maintenance required
- Aluminum cladded and will not rust
Disadvantages: The SIPs type of building materials is more expensive and harder to obtain in certain colors.
Patio covers constructed with Structural Insulated Panels (SIPs) boast significant energy efficiency due to the exceptional thermal insulation properties of this strong building material.
FAKE: NOT AN INSULATED PATIO COVER:
If it doesn't offer you any type of R valve, or insulated valve then you shouldn't buy it?
Buyer Beware of the patio cover Sharks lurking out here that trying to market a "rolled formed" aluminum flat pan type of patio cover with a real cheap added top covering and a conventual Styrofoam foam insert as an "insulated patio cover"
* The panel covering is only .019 in thickness which is no thicker than just a thin flashing material. It will dent, ding up and dimple up with the least little bit or the slightest form of small hail and look like hammered you know what after that and who wants that of their house?
* Styrofoam inserts have little no thermal value to it whatsoever. Foam will soak in the rain and start mold and mildew and rot as it set in water.
See the illustration below.
Beware of the Patio cover Sharks these dudes are willing to cut structural corners and exceed engineering standards and build a structured that was doesn't meet any standard build code requirements in its building design nor engineering specifications.
They're building practice of using a 3"x3" lock seam steel horizonal post / pole for the purpose of a "vertical structural header" doesn't meet code requirement. "All building materials must be used for the purpose of which they are designed and intended. All patio cover canopy structure wind and live (snow) loads come the proper use and engineered specifications of its poles and beam understructure framing components and not the top canopy materials as long as the top canopy meet a 20 pound per sq inch live load requirement in Oklahoma.
It is very important to use the proper beam(s) for the structure to be able archive wind or snow load requirements. That does require the use of a heavier steel or extruded aluminum designed vertical beam(s) instead of a haphazard improvised beam because it cost less and they can show you a cheaper overall price. A rolled formed lock seam steel pole or posts that they are turning sideways and improperly representing for used for a beam to which it is not, and it has no testing nor engineering nor specifications to show it may be used as a beam and meets any wind nor snow load requirement. That is equivalent to using a wooden 2"x6" when specifications or code says you should a 2"x12" for the open span header application in a wood framed application. Not quality built, and you shouldn't buy it if it is not built correctly.
Want to reduce sun and heat exposure on your patio and your home? Any patio cover can do that that only the Structural insulated Panel (SIPSs) type of patio cover will reduce the heat infiltration from the blazing hot sun.
Get outside and join the Patio Life!

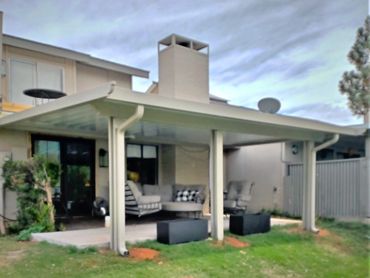

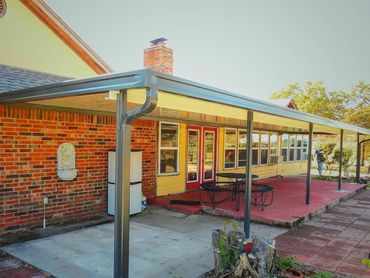

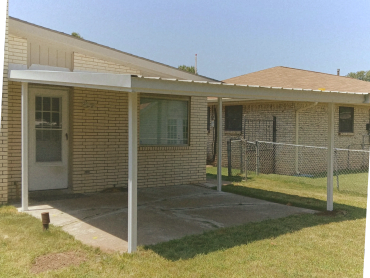

Rolled Formed - Machine rolled aluminum canopies
Flat-Pans
Flat-Pans
Flat-Pans

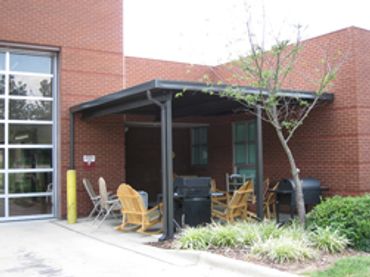

Rolled formed Flat Pans are machined formed by sending rolled flat stock coil materials through a series of rollers to form the final pans shapes then cutting them to it's final to size. Much like a gutter machine but on a larger scale. All of our rolled formed designed products are available. These very large and heavy rolls of flat stock coils that are available in various different thickness and are formed by different mills in their own different sizes and shapes. Not all pans are the same nor may not be interchanged.
All of the rolled formed Flat-Pan are not the very same nor equal as different manufacturers offer various different thickness of this manufactured building materials. All sizes are formed to the very own unique pans styles shapes and sizes, so they are proprietary to their very own product manufacturer. It is important to know what the thickness is of the rolled formed panels and how it can perform in a damaging hail weather event. Although pricing has gone up the custom rolled formed pans as a whole offers a good-looking modern-day patio canopy cover product at an economical affordable price. The rolled formed products can also have its own built-in guttering system as well. All of our aluminum or steel rolled formed pans have the handsome baked-on finish as well as the strength to give you beauty, durability, at little to no maintenance cost.
There is also a foam core insert option (see below) that can be added to 12"-inch-wide flat pan coverings.
Today we can use a combination of various different building materials in building anyone types of structure. Today we blur the lines a traditional structure and we can use Wood - Steel - Aluminum and various other building materials to build any type of structure based on the customers wants and needs and budget requirements. You might want a rustic look of wood poles and beam understructure with the benefits of using and structural insulated canopy top roof.
It all starts with a new patio cover to protect everyone from weather and the sun. Then most will add their own personal touches like furniture, grill, outdoor TV or even a bar or a new grow wall that is popular these days.
Envision a space where family bonds strengthen, friends eagerly gather, and relaxation is limitless. Embrace the summer vibes and cool evening and fire up the grill to create some delicious delights for everyone to dine on under your new patio cover!
Our daily mission is to transform an ordinary outdoor space into a shaded, welcoming retreat!
Flat-Pans
Flat-Pans

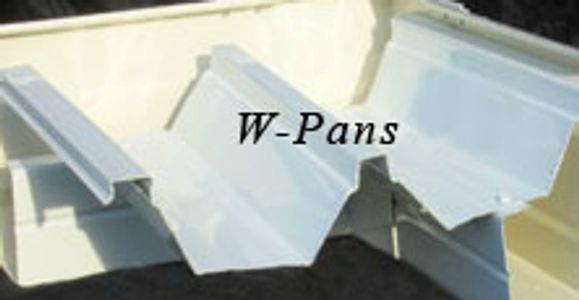

W-pans or Twin V pans are machine-formed by passing painted or colored flat stock through a rolling machine that shapes the material into its final form, which can then be cut to various lengths. Imagine it as an oversized guttering machine that forms gutters into shapes.
Roll-formed W-pan patio covers offer economical, solid shade that protects you and your home from inclement weather and harmful UV rays, while also providing a comfortable area for relaxation. Our steel or aluminum W-pan systems are robust and adaptable. Each project system is designed with pre-engineered pans and understructure to meet local code requirements.
The W-pan is preferred because each bend adds to the panel's rigidity. These roll-formed pans are available in both steel and aluminum, with a variety of thicknesses and colors.
W-pans use the same external perimeter guttering system as flat pans, which is also rolled into its final shape and cut to specific lengths. However, these perimeter guttering profiles may differ and are not always interchangeable between different manufacturers. They also use a stamped, formed corner that can vary significantly in shape from one manufacturer to another.
W or Twin Vee pans have a wavy design, and at their highest point, they create a triangular area that small birds often inhabit. A small foam triangle, known as a Bird Block, is designed to fit into this section to deter them, but birds are clever and often remove these blocks. Many people have attempted various methods to keep the birds out, which is why the flat-pan style is generally more preferred. With its flat bottom, the pan does not have undulations and does not require any bird blocks.
Both types of roll-formed pans may optionally include pre-installed aluminum leaf gutter guards, which are designed to prevent larger debris from entering the drainage or guttering system.
The only significant maintenance required for these systems is perhaps an annual cleaning and visual inspection.
The integrity of any structure is only as robust as its foundational columns (poles) and beams, as they perform all the critical support work.
Yes, you can add the aluminum "Santa-Fe: style type of trim onto the rolled formed aluminum flat-pan type of patio cover, carport or screen room. As experienced skilled tradesman and craftsman of the trade we can offer this service to you that the other will not.
Rolled-formed 12"x3" aluminum flat pans are available as a top canopy cover for insulation and hail protection. These panel coverings come in a thin, lighter gauge of .019 thickness, similar to most thin flashing materials, and must typically be installed during the installation process only to protect the bottom rolled formed pans from hail damage. The top coverings are only available in an "anodized" aluminum color only. There is also an optional "plain Styrofoam core insert," which is not the high-density foam core used in SIP panels. These foam inserts can fit inside the flat pans and be covered by the canopy top covers, but they do not provide much of any the energy-saving benefits or R-values of Structural Insulated Panels (SIPs). Instead, this is a low-cost imitation of real insulated panels. Additionally, after prolonged exposure to rain, the Styrofoam inserts can decay, mold, rot, and even develop growths over time.

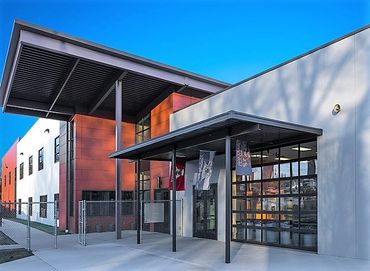

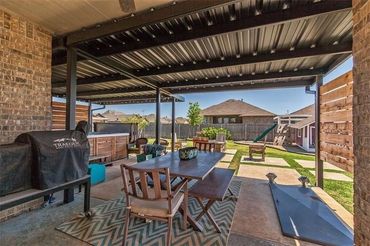

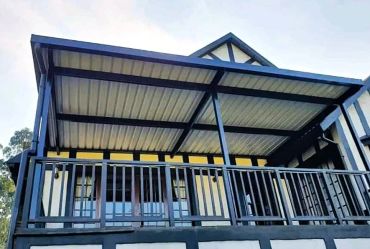

Building with Structural Steel - Red Steel/Galvanized Steel

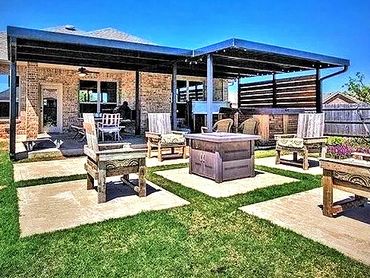

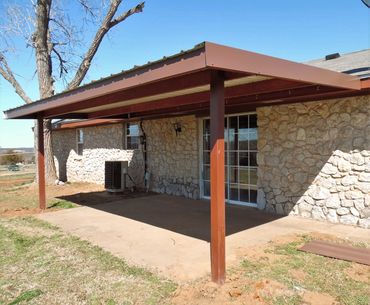

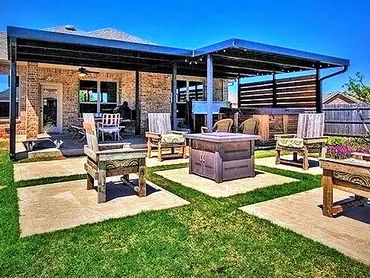

Red Steel
Painted / Coated Steel
Galvanized Steel
Red Iron Steel comes in various shapes, including angles, C-channel beams, and I-beams, available in multiple thicknesses and lengths. It is commonly used as a framing material, typically clad with sheet metal and bent-formed trim in several color options. The red oxide is a primer shop grade paint coating and should be painted in an outd
Red Iron Steel comes in various shapes, including angles, C-channel beams, and I-beams, available in multiple thicknesses and lengths. It is commonly used as a framing material, typically clad with sheet metal and bent-formed trim in several color options. The red oxide is a primer shop grade paint coating and should be painted in an outdoor application.
1. Strong - Most metal building is constructed using some form of steel. Steel is strong and able to open span longer spans then wood.
Steel is actually black in color and the steel is black steel that has a shop coating of red oxide primer coated steel. Also referred to as red iron, red steel etc. and so one.
The red steel is used in most metal building applications and the steel building are quickly cover with metal sheet metal cladding materials that is often sheet metal and is mainly used in a indoor environment and is protected from the outdoor weather.
When red steel is used in an outdoor weather environment it should be painted with a final protected coating to prevent the steel metal building components from rusting.
Most of the time the red steel framing components are then finished out with some form of metal sheet metal cladding and custom bent formed trim option.

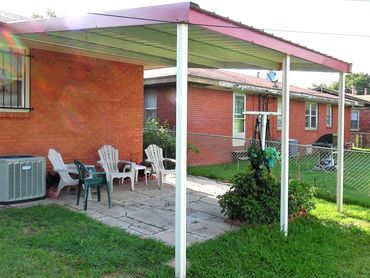

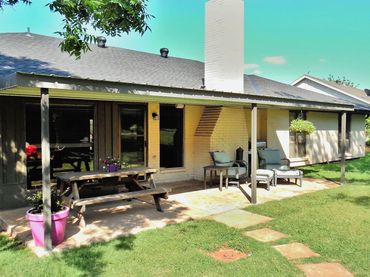

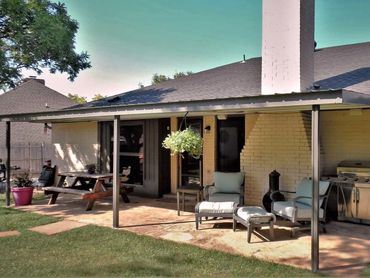

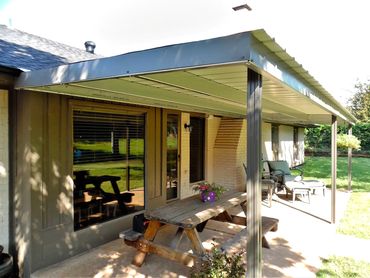

Galvanized Steel
Painted / Coated Steel
Galvanized Steel
Strong/Durability: Galvanized steel boasts high durability, which is perfect for applications requiring longevity. Its zinc coating serves as a protective barrier, safeguarding the underlying metal from rust and degradation.
Corrosion Resistance: The zinc-iron alloy layer offers superior corrosion resistance. This allows galvanized steel
Strong/Durability: Galvanized steel boasts high durability, which is perfect for applications requiring longevity. Its zinc coating serves as a protective barrier, safeguarding the underlying metal from rust and degradation.
Corrosion Resistance: The zinc-iron alloy layer offers superior corrosion resistance. This allows galvanized steel to endure harsh environmental conditions, such as moisture, salt, and various chemicals.
Strength: Even post-galvanization, galvanized steel retains its robustness. It's frequently utilized in contemporary steel-framed buildings, balconies, verandas, staircases, and more.
Low Maintenance: Requiring little maintenance, galvanized steel helps to minimize long-term expenses. It continues to look good, and resists rust effectively.
Much like a galvanized fence that has a silver color coating on it to protect it from the outdoor environment. Galvanized coat metal can steel rust but normal over a must long period of time then a steel that has little to coating protection.
All types of steel fabricated products can have various different pole and beam option as well as different gladding options option that are available in different color options.
Painted / Coated Steel
Painted / Coated Steel
Painted / Coated Steel
Powder coating is a highly durable finish for metal frames. Here are some benefits of using powder-coated steel frames:
Rust Resistance: - Powder coated steel frames offer high rust resistance. The powder coating finish, unlike traditional paint, can endure up to 20 years without the need for reapplication.
Chip Resistance: Powder coating
Powder coating is a highly durable finish for metal frames. Here are some benefits of using powder-coated steel frames:
Rust Resistance: - Powder coated steel frames offer high rust resistance. The powder coating finish, unlike traditional paint, can endure up to 20 years without the need for reapplication.
Chip Resistance: Powder coating, which adheres electrostatically, does not chip or peel like paint over time, making it a robust choice for steel frames in the elements.
Enhanced Durability: Powder coating adds a protective layer against dents and scratches, bolstering the steel frame's structural integrity without increasing weight.
- Low Maintenance: Steel frames with a powder coating demand minimal upkeep. Simple cleaning is sufficient to maintain their appearance.
Color is black (framed) with gray top and side trim.

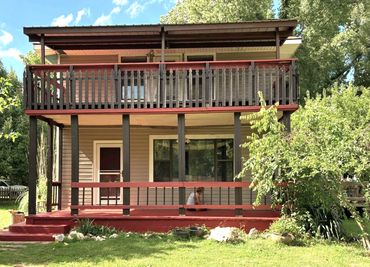

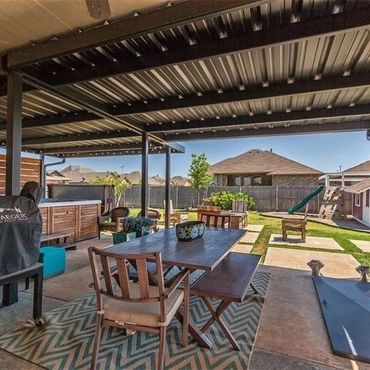

Structural Steel - Patio covers / Red Steel or Galvanized Steel
.jpg/:/cr=t:0%25,l:0%25,w:100%25,h:100%25/rs=w:370,cg:true)
-7932520.JPG/:/cr=t:0%25,l:0%25,w:100%25,h:100%25/rs=w:370,cg:true)
.JPG/:/cr=t:0.82%25,l:0%25,w:100%25,h:98.36%25/rs=w:370,h:278.1954887218045,cg:true)
.JPG/:/cr=t:0%25,l:0%25,w:99.75%25,h:100%25/rs=w:370,h:278.1954887218045,cg:true)
.JPG/:/cr=t:0%25,l:0%25,w:99.7%25,h:100%25/rs=w:370,h:278.1954887218045,cg:true)

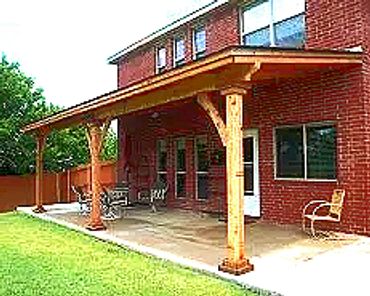

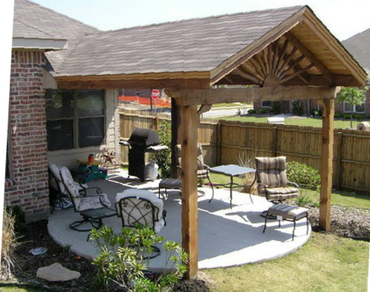

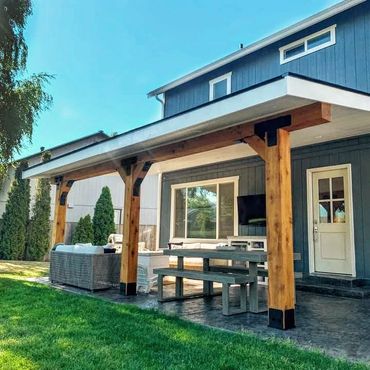

Wood Structures - Stick / Timber Framing
Wooden structures - Stick framing in carpentry is steeped within our history, yet for outdoor structures, it's essential to choose woods like Cedar or Redwood that are appropriate for exterior use. These types of wood offer natural benefits. Additionally, wood used outdoors must be treated and safeguarded to maintain its aesthetic quality.
Numerous different build options with numerous different building materials let us know more about your build requirements and your build budget might be. We offer different roof designs with professional stick framing or truss framing experience in both attached or stand-a-lone structures.
Is paradise a place, or is it just a state of mind?
Also see our pergola or porch pages!
Embarking on a patio project presents a plethora of choices for covers and the overall design options. There is a vast array of building materials, sizes, and colors, providing countless opportunities to customize your outdoor living space. The potential for constructing your patio cover appears boundless and limitless.
We are professional wood framers by trade that also has years of experience to build with aluminum and steel products as well. Sometimes we mix the various different building materials to build any one Patio Cover. most wood structures require at least a 3/12 or better roof pitch to shade the rainwater off it.
Let us know when you're ready to log off and shut down, then take a moment to step outside and unwind on your new patio.

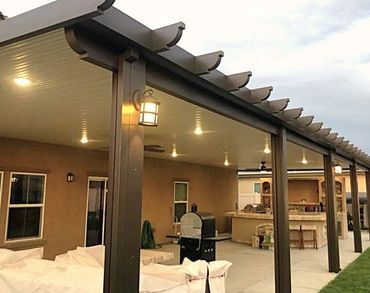

Commerical Heavy / Duty - Extruded Aluminum Patio Covers
Aluminum is often the material of choice for outdoor canopy covers because it does not rust over time, unlike steel structures. There are various types of aluminum covers available, including rolled-formed and heavy-duty, thicker extruded aluminum canopy structures.
Extruded shape. (means that the liquid aluminum was forced though a die to form its final shape) not rolled into it is formed into its final shape. The extruded aluminum canopy structures are much thicker and heavier gauged building materials then most of the smaller gauged rolled formed or bent into formed economical priced aluminum canopy.
Extruded aluminum covers are thicker and heavy duty and is considered to be a lifetime aluminum roof panel. They are mainly used a commercial or industrial or a hospital or a school learning application or anyone who might want the strongest lifetime roof cover canopy that is made with aluminum. We offer extruded covers for residential commercial and industrial applications as well.
We deal is Shade!
Louvered Roof or Movable Slats Canopy.
The modern-day Hi-Tech patio cover! Your choice, let the sunshine come-on in or just keep it out altogether!
Pivoting movable slat or louvered roof patio covers offer versatility, allowing sunlight to filter through when open or providing shade when closed. These modern-day patios cover/ pergolas come equipped with technology to open, close, pivot, and slide to meet your specific needs. They can be fully automated smart patio covers, enabling control via an app on a smartphone.
The patio cover turns into a pergola!
A "Smart" Louvered Roof gives you the power to tailor your outdoor environment to your preferences, be it shade, sun, or a bit of both. “Smart outdoor spaces are no longer a futuristic concept—they’re here. Smart homeowners want patio covers that don’t just provide shade but actively contribute to energy efficiency and year-round comfort.”
Constructed from high- end high quality materials, our systems are designed to exceed your expectations, no matter if you are a homeowner, builder, architect, or business owner.
Additionally, the movable slat patio cover can be enhanced with custom LED lighting installations, making it the ultimate patio cover solution. It's perfect for use in commercial settings like restaurants or bars, or even in your own backyard.
Let's create the space that you deserve!

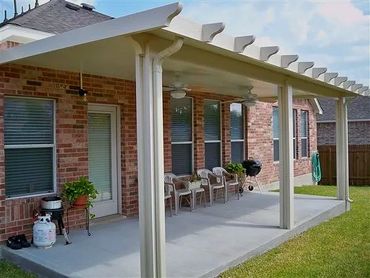

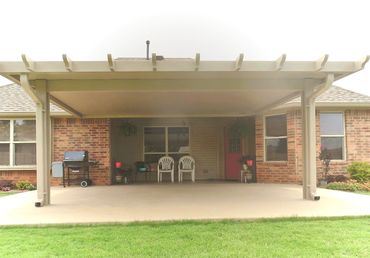

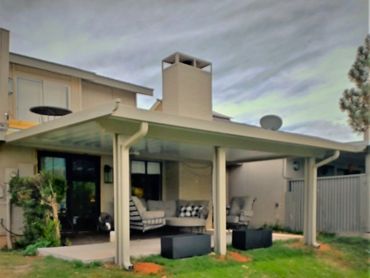

What is a Santa-Fe or Monterey trim package?
Elitewood Ultra and Classic Trim
We offer two different Santa-Fe or Monterey trim products - One the new Ultra trim is called a Monterey trim package which is little bit thicker aluminum trim product with more of a driftwood wood grain appearance with is a deeper "more defined" embossed wood grain trim package.
The other is the Santa-Fe trim package which is known by the Classic trim which has a smoother wood grain finish trim finish to it. It used to be known as Alumawood which the product provider was recently sold 04/24 but is still available from the newer product owners. Both trim products can be used to form different trim packages on your carport or patio project or be used in a lattice work application such as a pergola.
Want to make a Statement!
The Santa-Fe or the Monterey aluminum trim packages can be added to almost any aluminum type of carport or patio cover. It is available in different color and four different pergola rafter tail ends styles. Why Aluminum? Because it doesn't rot like wood and will never rust and doesn't require any ongoing maintenance. This picture is a patio cover with the full Santa-Fe trim package trim with its side and front canopy cover trimmed out and its lower "cross beam header" and its poles front and back claddings which has to be done at the time of the installation. (Only the canopy top trim claddings may be added at a later date) In this application there is a hidden canopy cross beam t
This trim package can be added to any Falt or W-pan or SIP types of Patio cover Screen rooms, Sunrooms as well as Carport Structure
This is not wood! It is aluminum that is embossed or made to give a wood like appearance! It will not rot or require any ongoing maintenance like any wood product.
Our newer Monterey trim packages that is a embossed aluminum trim that is made to look like a wood trim package can enhance the architectural style of any carport or patio cover, screen room or sunroom. We also use it for some lattice work on some of our combination patio covers. These trim packages now have a lot more detailed embedded wood gains feature that we call the Monterey trim package. If you don't want the run of the mill style! Make it POP and give it some more WOW factor! It can be also used in a pergola or lattice work applications. This is the picture of our first Monterey carport trim package build that we added to a carport installation that was completed 04/24 and you can see the difference in the embossed wooden grain depth on the Monterey trim packages.
Buyers Beware...
Buyer Beware of any contractor / builder who wants to build any structure up on top your roof surface. They want to attach the canopy structure on top of your shingles or use building materials that are not designed for the purpose that they use them for.
That is not advisable and is highly unorthodox building method for several different unless you're building using the proper roof risers and connecting to the frame of the house instead just the roof decking surface. Yeah, they are out here for real!
More about Polycarbonate Patio Covers and Pergola Coverings
Polycarbonate translucent patio covers roofing panels are designed to provide protection from the rain and the UV rays while still allowing the sunlight to come on in much like a skylight in a house. Poly-carbonate sheets and panels have a wide range of applications across different industries, including construction, automotive head and taillight, police shields. agriculture, eyewear and signage. These versatile materials are used for roofing, skylights, greenhouse panels, machine guards, and more due to their exceptional impact resistance and durability. With its lightweight nature and ease of fabrication, polycarbonate is the top choice for projects requiring a balance of strength and flexibility. Homeowners love this type of patio addition, after all the material is far advanced from hideous roofs of old. Still, others see problems with this modern roofing system for their outdoor activities. So, let’s take a clear look of polycarbonate translucent patio covers.
Back in the 80s, you could buy a clear-ish patio system with fiberglass roofing panels on the cheap. But after a year or two, the panels would turn all types of odd colors
Then along came poly materials that looked much better than inexpensive materials like fiberglass. But quality and aesthetics don’t come cheap. The downside of better-looking roofing panels is they will often cost more than other roofing materials. Yet, the value comes into play as these modern polycarbonates can last as long as the home it’s attached to.
Patios are usually on the hottest part of your property. That’s why you’re looking into a patio cover, pergola or screen room. So, the roofing material has to be able to withstand extreme temperatures.
Polycarbonate plastic sheets are UV (ultra-violet) resistant and can withstand exposure to the elements without yellowing or deteriorating over longer periods of time. This makes them an excellent choice for outdoor applications such as skylights, greenhouses, and patio covers or even in the sign industry. Clearly, this space-age material is meant to last. But one downside is that polycarbonate roofing panels can be damaged with highly concentrated or abrasive cleaners or by storm damage such as hail. The material is subject to scratching, so we wouldn’t recommend an application with a bunch of trees that can emit a lot of debris that can scratch the panels or by blowing leaves off your translucent patio cover.
These ploy panels do give rain protection but doesn’t keep them from the most valuable thing Earth has – the sun or the heat. Some might say the exact opposite of what you want in a patio cover. Even better, polycarbonate translucent patio covers do block out the bad UV rays from the sun but that is not the same what is called radiant heat transfer. The radiant heat is allowed to pass though all types of panels so they can heat up and get hot. UV rays can lead to wrinkle and dangerous skin cancer. But with translucent patio panels, nearly 100% of these harmful rays are blocked, while still letting the light to on into the structure. It’s true that some polycarbonate patio covers do have a little bit insulation – due to the invisible air trapped between the bottom and top panels but not much. But this isn’t near as much insulation protection as you get with our other models utilizing foam insulation type of panel. Since it’s impossible to see through insulated aluminum panels, studies show, that is the trade-off. I get it for someone who wants to feel and see the sunbeams while being a little less insulated from the elements and we do offer a polycarbonate roof option
Ploy panels are more commonly used in a colder or cooler weather climate such as the Pacific Northwest region that can use the heat infiltration that accurses with any type of tremulant panel. Ever been around a window or a skylight that allows the radiant heat transfer though the roofing panels and into the structure. Or a greenhouse or even botanical garden facility. I'm sure you have felt the "radiant heat" that the polycarbonate translucent panel can allow to transfer though the roofing panels. In a colder weather climate this is expectable to help warn up the area on cooler rainy day. In a warmer climate such as in the Southern regions that energy may not be wanted the radiant heat so much. They might prefer a different type of solid roof panel that doesn't allow as much of heat to transfer into the structure. Like all glass manufactures, might add additional protective glass coatings to the panels to help prevent or lower how much radiant heat is allowed to come through the glass panels. But keep in mind that any protective coating does fade and dissipates in its performance as these polycarbonate panel ages. Also, the ones who are promoting might use a color such as a darker color like a bronze color panel to help prevent some of the heat transfer that is allowed to come through the ploy panels.
So there is a tradeoff of using the polycarbonate roofing panels. More heat transfer is allowed to come though the panels, but they do allow the sunshine to come through theses roofing panels. What to you prefer? We do offer and nice polycarbonate patio cover option. I always suggest only using these polycarbonate panel in a well more ventilated application. Or an application with fans or an application with a higher roof height so that heat that is generated can be ventilated out of the structure quickly. Commonly known as and called the greenhouse effect. Where there is light there is heat especially on a Summers hot day... Feel free to think of some other pros and cons then let’s chat.
Pros:
- Sunlight is a vitamin D supplement.
- The sun can improve moods.
- Lightweight
- Exceptional impact resistance
Cons:
- Sunlight creates heat
- Costs
- Limited life span - 10-20 yrs
- Ploy panels are going to have to be replaced
- Scratches
It Summer, Time to beat the heat sale.
If you got a project and you want to get the good stuff cheaper then give us a chance to bid the project and save. We don't just one type, one size, one size, one design we build them all. Call us today and save!
